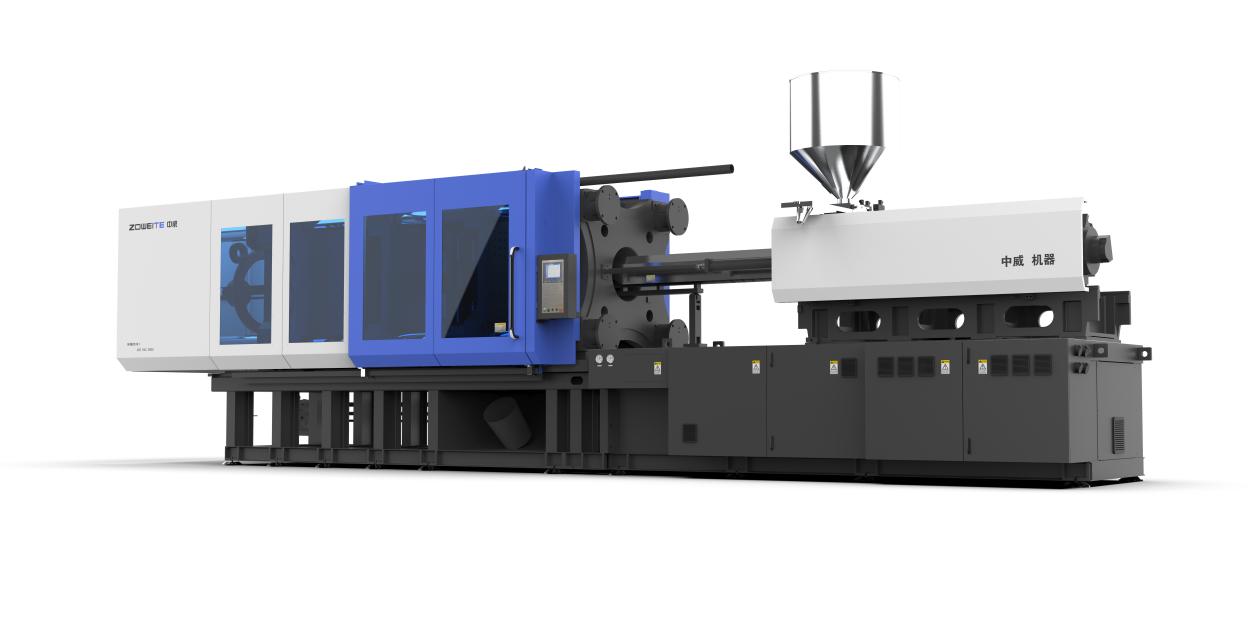

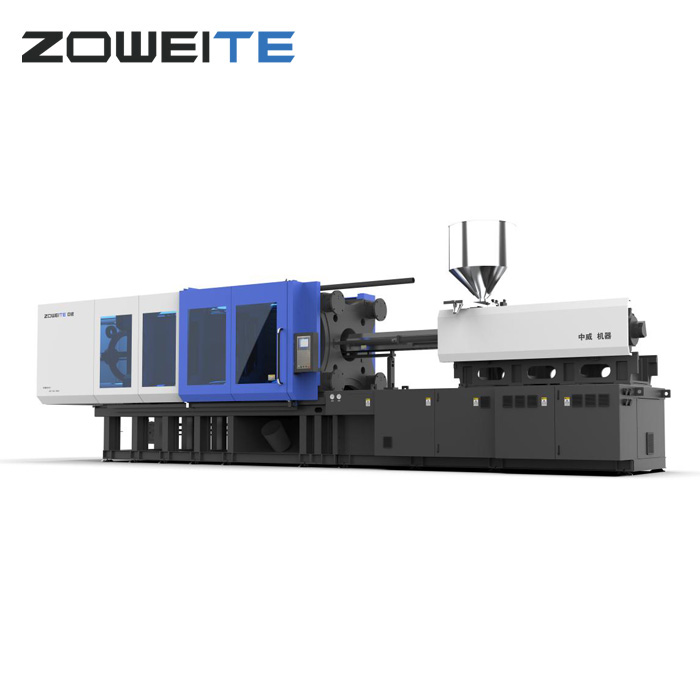

Fully Automatic 780 Tons Injection Molding Machine
  • Fully Automatic 780 Tons Injection Molding MachineFully Automatic 780 Tons Injection Molding Machine
  • Fully Automatic 780 Tons Injection Molding MachineFully Automatic 780 Tons Injection Molding Machine

Fully Automatic 780 Tons Injection Molding Machine

The Fully Automatic 780 Tons Injection Molding Machine is the molding equipment that makes thermoplastic or thermosetting plastics into various kinds of plastic products with plastic molding molds. The injection molding machine heats the plastic and applies high pressure to the molten plastic to make it shoot out and fill the mold cavity.

Send Inquiry

Product Description

 The Fully Automatic 780 Tons Injection Molding Machines produced by the ZOWEITE company are generally horizontal, servo system injection molding machines, equipped with international brand machine accessories. ZOWEITE will recommend the machines according to the needs of customers and recommend the most suitable machines.

Fully Automatic 780 Tons Injection Molding Machine

Is this machine a servo system?

Yes, The full automatic 780 tons injection molding machine equipped with a servo system. Most of our machines are servo systems.

We have single servo and double servo injection molding machine , as well as ordinary injection molding machines. Compared with the ordinary injection molding machine, the injection molding machine of the servo system is more energy-saving. It can accurately and quickly system the corresponding flow and pressure according to the actual needs of the product production process, so as to save the production cost. More precise, fast response, and can prolong the service life of hydraulic components.


What is injection speed?

Injection speed refers to the speed at which the screw or plunger moves during injection. As the speed increases, the time required to complete an injection stroke is shorter and allows higher production. The injection speed has a great influence on the viscosity.

The full automatic 780 tons machine adopts high-speed injection, which can probably reduce the injection time and shorten the molding cycle. It can improve the plastic process and facilitate the forming of thin-walled products. It can produce thin-walled products with the same materials and low-cost materials, save production costs and bring maximum economic benefits to customers. High speed injection molding machine can also prevent cooling deformation and improve the surface gloss of products.


Full automatic 780 tons injection molding machine parameter

Technical parameter

GF650CEH

GF780CEH

Screw Diameter

mm

90

95

Screw L/D Ratio

L/D

21

23.7

Max. Shot Weight(PS)

g

2952

3225

Injection Pressure

MPa

177

193

Screw Torque & Speed

rpm

0-180

0-180

Clausing Force

kN

6500

7800

Opening Stroke

mm

900

990

Space Between Tie Bars (H*V)

mm

920X868

960X940

Max. Mold Height

mm

950

1000

Min. Mold Height

mm

400

450

Ejector Stroke

mm

250

250

Ejector Force

kN

152

181

Hydauli c System Pressure

MPa

16

16

Pump Motor Power

kW

82

112

Heater Power

kW

33

47

Oil Tank Capacity

L

700

1100

Machine Dimensions(approx.)

m

9.1X2X2.8

10.5X2.2X3.0


The full automatic 780 tons injection molding machine is an injection molding machine with full automatic and servo system, etc. The full automatic 780 tons injection molding machine can effectively save customers' time and improve the production efficiency. The full automatic 780 tons injection molding machine has two types: ordinary injection molding machine and special injection molding machine for machine oil barrel. With its unique design, the special injection molding machine for machine oil barrel have short cycle time, about 30 seconds. More stable performance.


Our company has more than 30 years of experience, has its own R & D team and has obtained a number of patents. Our machines have won the love and support of customers by virtue of their new stability, high quality, low cost, etc.

In order to ensure the quality of the machine, we choose the best machine configuration. We will send the machine only after we confirm it will be running well and can produce the qualified products. We will also provide customers with complete production line and site planning according to customers' needs and site area, so as to save customers' time and machine floor area.
