120 tons injection molding machine
  • 120 tons injection molding machine120 tons injection molding machine
  • 120 tons injection molding machine120 tons injection molding machine

120 tons injection molding machine

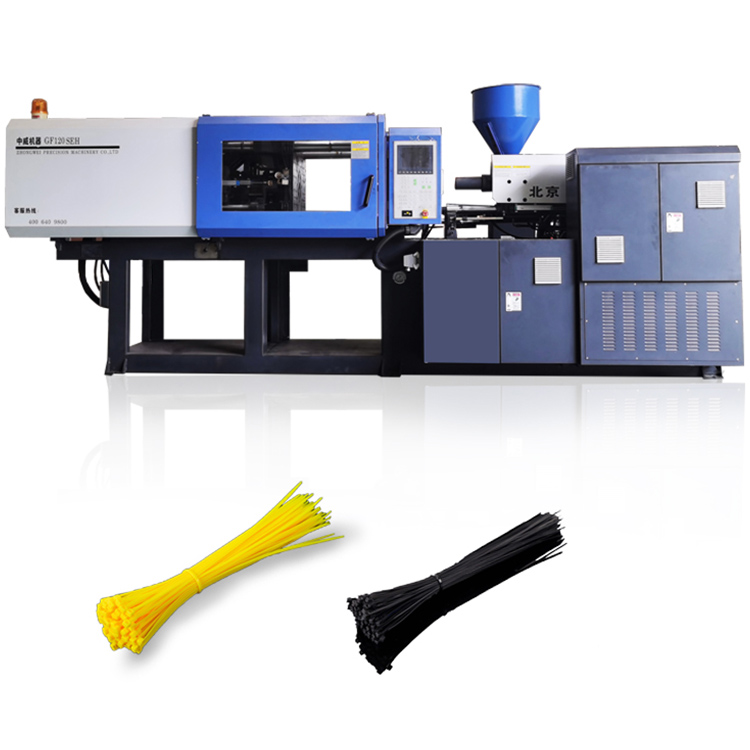

120 tons injection molding machine is a small injection molding machine with small floor area. It is suitable for producing all kinds of small plastic parts, such as plastic caps, nylon cable ties, etc. ZOWEITE 120 tons injection molding machine has servo machine and standard injection molding machine. ZOWEITE manufacturer can also provide the suitable machine and best offer according client’s requirements.

Send Inquiry

Product Description

120 tons injection molding machine is a small injection molding machine with small floor area. It is suitable for producing all kinds of small plastic parts, such as plastic caps, nylon cable ties, etc. ZOWEITE 120 tons injection molding machine has servo machine and standard injection molding machine. ZOWEITE manufacturer can also provide the suitable machine and best offer according client’s requirements.


120 tons injection molding machine


The feeding mode of the 120 tons injection molding machine is provided?

Servo 120 tons injection molding machine has three feeding methods: front feed, rear additive and fixed additive.Generally, according to the nozzle and material conditions.

1.Front feed: After each injection is completed and the molding meets the pre-molding requirements, the injection seat retreats of 120 tons injection molding machine to the next working cycle to contact the nozzle with the injection mold.The method is suitable for not easy nozzle temperature control, high back pressure and reflux prevention.



120 tons injection molding machine


2.Post-feeding: after injection, take the seat back and preforming. At the start of the next working cycle, the injection seat pushed forward for injection.The method is used to control the nozzle temperature and to process the clean plastic.

3. Fixed additive: the nozzle remains in contact throughout the injection molding process.This method is suitable for nozzle temperature control and plastic molding temperature range.

120 tons injection molding machine parameter:

120 tons injection molding machine


Safety precautions for oil cylinder of 120 tons injection molding machine

1. In cases with large travel and high ambient temperature, the 120 tons injection molding machine cylinder can only be fixed at one end, and the other end remains free expansion to prevent cylinder deformation caused by thermal expansion.

2. The end pin hole of the piston rod should be in the same direction as the earring pin hole (or ear shaft), otherwise the servo injection molding machine cylinder will be subject to the bending load with the ear shaft as the fulcrum, causing wear and jam.



120 tons injection molding machine


3. Before installation, it is necessary to carefully check the processing quality of the shaft ends and holes, chamfer and remove the burrs, and then clean and blow it dry with kerosene or gasoline.

4. The sliding surface of the installation surface and the piston shall be maintained to a certain degree of parallel and verticality.

5. The center line of the cylinder should be concentric with the action line of the load force to avoid causing the example force.Otherwise, the seal body or piston is easy to wear.

6. For oil cylinder with large stroke, support should be set in the cylinder block and cylinder rod of servo energy-saving injection molding machine to prevent downward bending of self-weight.

7. The sealing ring of the oil cylinder should not be installed too tight, especially in the u-type sealing group. If it is too tight, the movement resistance of the servo-energy-saving injection molding machine piston rod will increase.

ZOWEITE Machinery Company



120 tons injection molding machine


ZOWEITE Machinery company are in a good position not only to supply you high quality machinery, but also the excellent after sales service. Well-trained engineers will offer you any technical support.
