Horizontal Plastic Injection Molding Machine
  • Horizontal Plastic Injection Molding MachineHorizontal Plastic Injection Molding Machine

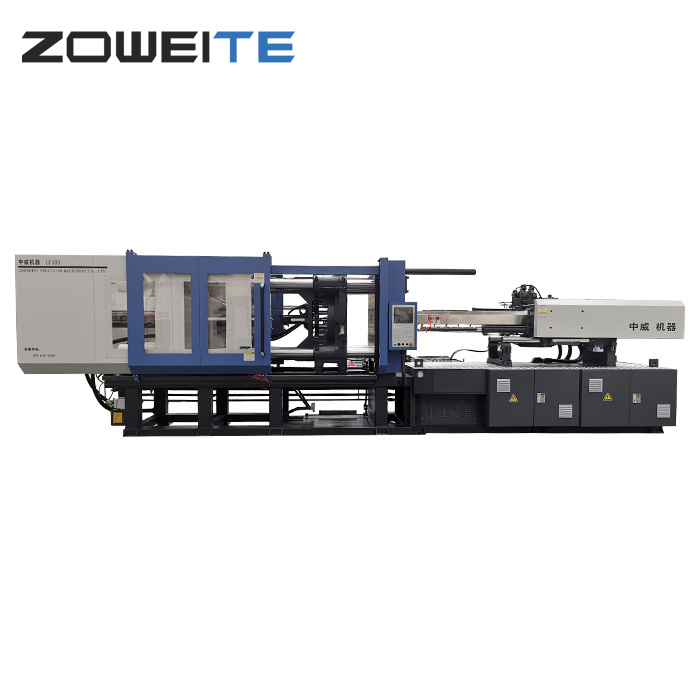

Horizontal Plastic Injection Molding Machine

Horizontal plastic injection molding machine: This is the most common type. The clamping part and the injection part are on the same horizontal center line, and the mold is opened in the horizontal direction.

Send Inquiry

Product Description

Horizontal plastic injection molding machine: This is the most common type. The clamping part and the injection part are on the same horizontal center line, and the mold is opened in the horizontal direction. Its characteristics are: the body is short, easy to operate and maintain; the machine has a low center of gravity, and the installation is relatively stable; after the product is ejected, it can automatically fall under the action of gravity, and it is easy to realize fully automatic operation. Most of the injection molding machines on the market adopt this type.


Horizontal Plastic Injection Molding Machine


What are the characteristics of the horizontal plastic injection molding machine?

1. Because the mainframe has a low body, there is no height limit for the plant to be installed.

2. When the product can fall off automatically, it can be formed automatically without a manipulator.

3. Due to the low body, it is convenient to supply materials and easy to overhaul.

4. The mold needs to be installed by crane.

5. With multiple units arranged side by side, the molded products are easily transported and collected and packaged by the conveyor belt.


How should the horizontal plastic injection molding machine be used?


1. Check whether there is lubricating oil (grease) in each movable part, and add enough lubricating oil.

2. Turn on the electric heater and heat each section of the barrel. When the temperature of each section reaches the required temperature, keep it warm for a period of time to stabilize the temperature of the machine. The holding time varies according to the requirements of different equipment and plastic materials.

3. Add enough plastic in the hopper. According to the requirements of different plastics for injection molding, some raw materials are best to be dried first.

4. Cover the heat shield on the barrel.

5. Check whether there is water or oil in the electrical control box. If the electrical appliance is damp, do not turn it on. Maintenance personnel should blow-dry the electrical parts before turning on the machine.

6. Check whether the power supply voltage complies with it, generally should not exceed ±15%.

7. Check whether the emergency stop switch and front and rear safety door switches are normal.

8. Check whether the cooling channels are unblocked, and pour cooling water into the oil cooling machine and the cooling water jacket at the end of the barrel.


What is the role of the thermal insulation cover for the horizontal plastic injection molding machine?

Anyone who has used a horizontal plastic injection molding machine should know that there is an insulation cover on the horizontal plastic injection molding machine. This insulation cover has its important role. It can reduce the heat loss in the horizontal plastic injection molding machine very well, and it is effective Lowering the temperature of the working environment can make the staff more comfortable at work and can also save air-conditioning costs.


1. It is beneficial to reduce heat convection and heat loss in the injection molding machine, thereby reducing the temperature of the working environment and reducing the discomfort of the staff. At the same time, for those injection molding manufacturers that have installed air conditioning, the air conditioning cost will be relatively reduced. ,cut costs;


2. The heating speed becomes faster when the production is started, and the preparation time for the start of production is reduced. Simply put, there is no heat preservation cover, while heating, heat dissipation on the outer surface, the heat preservation cover is mainly to reduce the heat loss as much as possible. Reducing heat loss means saving electricity and improving production efficiency;


3. In the production of the manufacturer, the heat preservation cover can make the heating stability better. After the heat preservation cover is wrapped, heat storage will be generated between the barrel and the heat preservation cover, so that the temperature is stored inside and not lost. Therefore, the heating speed can be increased.
